Image 1 of 5LU-800
This gantry type 5-axis machining centre is also available as a MillTurn centre with an 800rpm turning table.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview

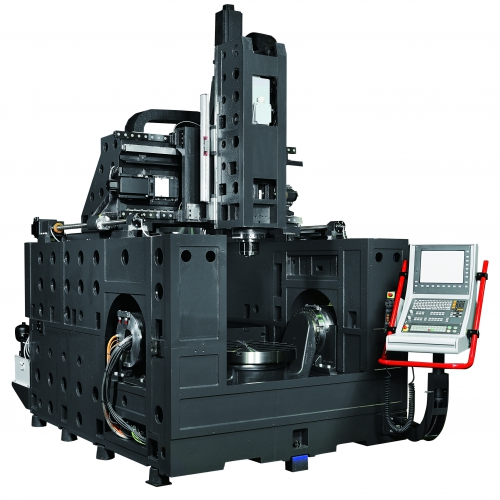

Litz LU-800 Gantry type 5 axis machining centre
Also available as a MillTurn Centre with an 800rpm turning table.
- Tilting A axis: +120 ~ -120 degrees
- Rotation C axis: 360 degrees
- Work table size: 800mm dia
- Max. load: 1,000kg
LU-800A
- Travels X/Y/Z: 800mm x 900mm x 620mm
- Tool shank: #40
- Max. spindle speed: 12,000rpm (optional 15,000 or 20,000rpm)
- 32 tool Armless type ATC (optional 64)
LU-800B
- Travels X/Y/Z: 760mm x 900mm x 620mm
- Tool shank: #50
- Max. spindle speed: 8,000rpm
- 24 tool Armless type ATC
