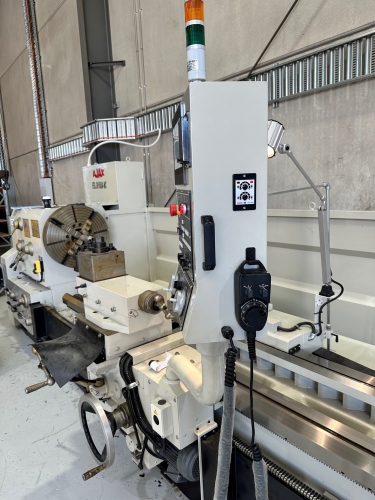

Image 1 of 4Manual + HMI Control
This heavy-duty lathe series offers manual, graphic interactive control, and G-code NC operation for diverse machining needs.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview

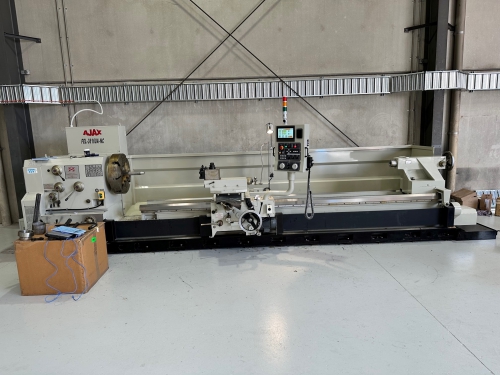

AJAX Taiwanese FEL-NC Series Lathes
This series offers Manual, Graphic Interactive Control (HMI), and G Code NC Operation.
- Models from 920mm swing up to 2000mm swing
- Spindle bores from 153mm up to 410mm
- Lengths up to 12,000mm
- 12 speed gearbox

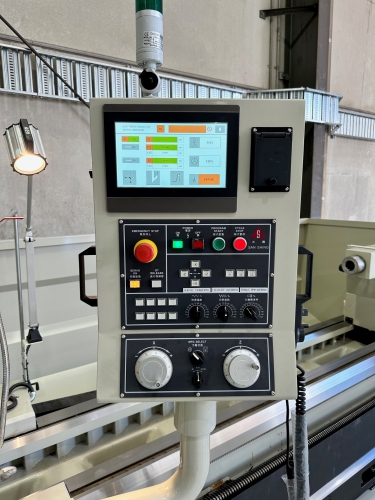

In the human-machine interactive dialogue (HMI) control mode, the operator inputs data on the graphic for automated machining and threading. The machine turns unlimited tapers without a turning attachment and creates curves without hydraulic copy equipment. It includes:
- Tool wear compensation
- Tool nose compensation
- Lead screw backlash compensation
- Resonance elimination
