Image 1 of 6MFH WS2 Plus
This motorised facing head for WS machines performs internal and external turning on tubular cylindrical bodies with automatic precision machining.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview

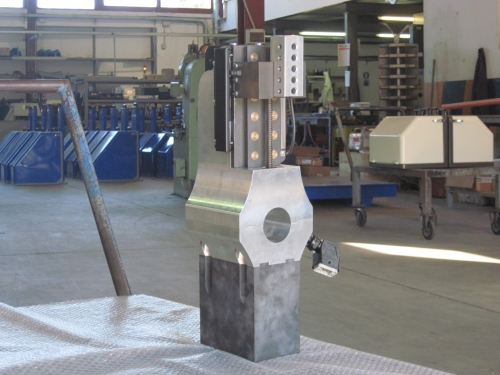

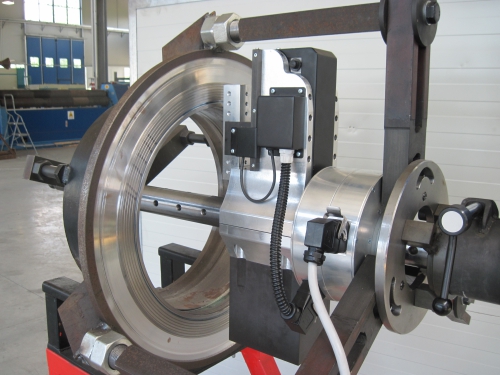

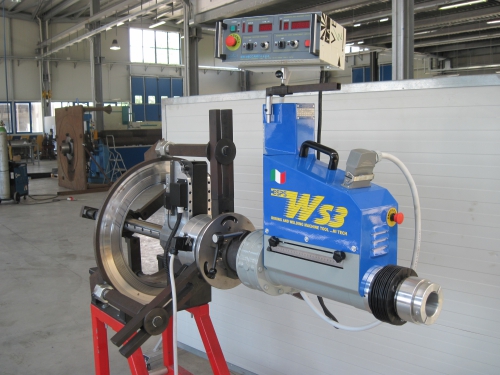

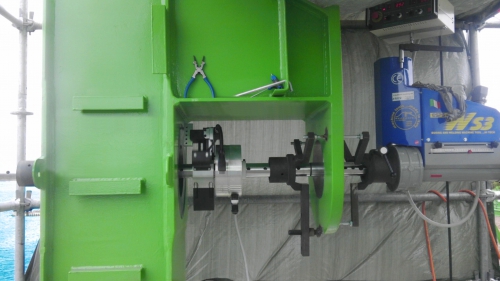

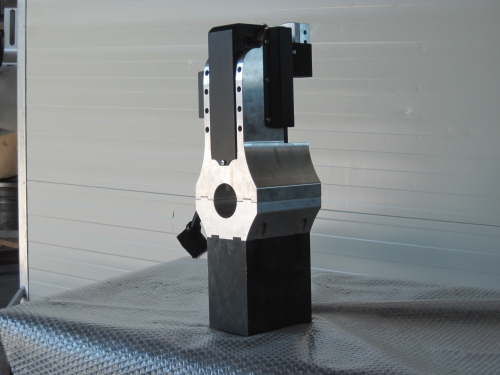

The WS2 motorised facing head, held on a rotating and translating axis and managed by the WS machines, is used for facing jobs or internal turning jobs (linear or non-linear) on tubular cylindrical bodies. It allows the operator to control all machining steps through an electronic control panel. The radial movement of the tool is controlled with regards to position and speed, allowing for automatic precision machining.
Through dedicated modular extensions, different ranges of diameters can be handled, and the counterweight can be proportionally set to obtain a perfectly balanced system.
- The stroke allowed to the tool is 90mm.
- The range for diametrical machining goes from Ø70mm to over Ø450mm (it is expandable and customizable upon request).
- The system is controlled by a control panel that is different from the main one.
- The system is electronically powered in an autonomous and separate way.
- The power supply is managed through a rotating collector, bound between the shaft and the system.
