Image 1 of 6MFH WS3 model 2
This motorised facing head performs precision facing and internal turning on tubular cylindrical bodies with a 90mm tool stroke.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview
MFH WS3 model 2

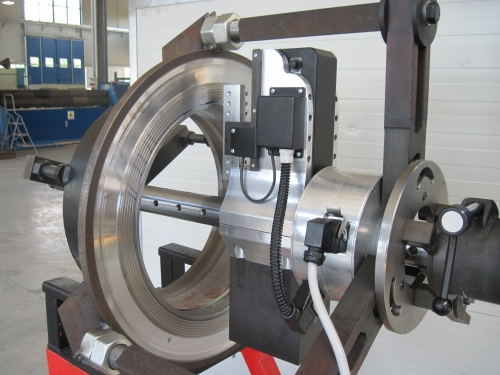

The WS2 motorised facing head operates on a rotating and translating axis, managed by WS machines. It performs facing or internal turning operations (linear or non-linear) on tubular cylindrical bodies. An electronic control panel allows the operator to control all machining steps. The radial movement of the tool is controlled for both position and speed, enabling automatic precision machining.

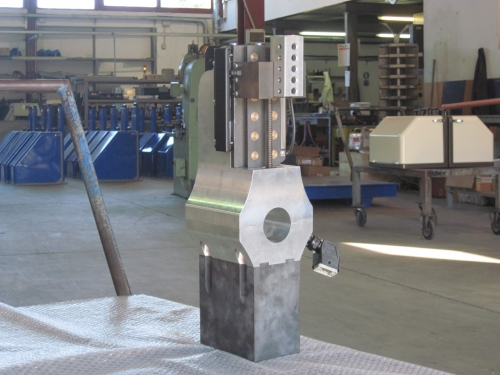

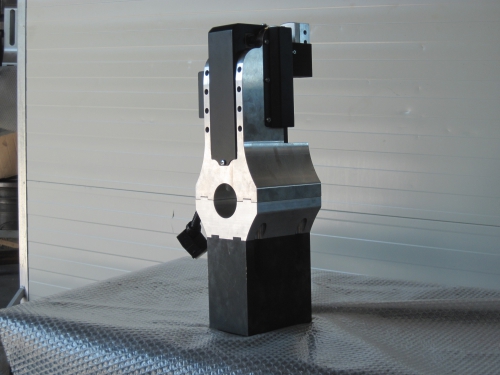

Dedicated modular extensions accommodate different diameter ranges and allow for proportional counterweight adjustment to achieve a balanced system.
- The stroke allowed to the tool is 90mm.
- The range for diametrical machining extends from Ø70mm to over Ø450mm.
- The system is controlled by a separate control panel.
- The system is electronically powered, autonomously and separately.
- Power supply is managed through a rotating collector, bound between the shaft and the system.
