Image 1 of 5MFH WS5

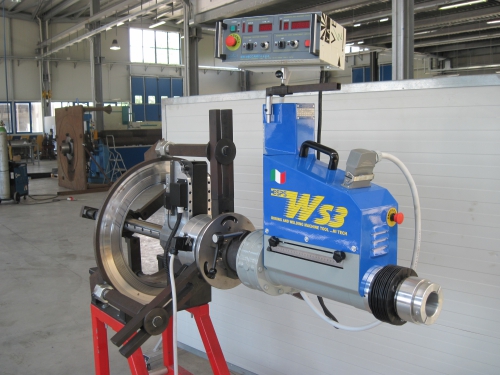

The MFH WS5 motorised facing head performs precision internal and external turning on cylindrical components, controlled via a dedicated electronic panel.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview

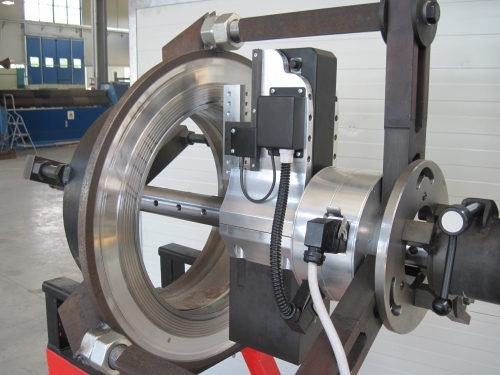

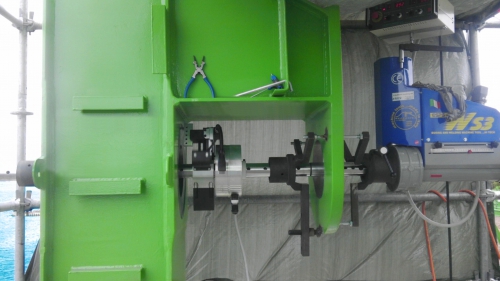

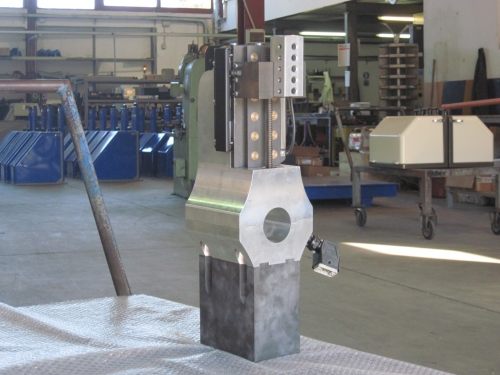

The WS5 motorised facing head is held on a rotating and translating axis and managed by WS machines. It is used for facing or internal turning jobs (linear or non-linear) on tubular cylindrical bodies. An electronic control panel allows the operator to control all machining steps. The radial movement of the tool is controlled for both position and speed, enabling automatic precision machining.
Dedicated modular extensions allow the system to handle different diameter ranges. The counterweight can be proportionally set to achieve a perfectly balanced system.
Specifications & Features
- Tool stroke: 240mm
- Diametrical machining range: Ø100mm to over Ø1000mm (expandable and customizable upon request)
- Controlled by a separate, dedicated control panel
- Electronically powered in an autonomous and separate way
- Power supply managed through a rotating collector bound between the shaft and the system
