Image 1 of 5Motorized Facing Head - MFH
Motorized Facing Heads for WS2 Plus, WS3, WS5 and WS7 Plus
Get in touch
Send us your details and we'll get back to you shortly.
More detailed specifications for this product are being added — please contact us for full information.
Overview

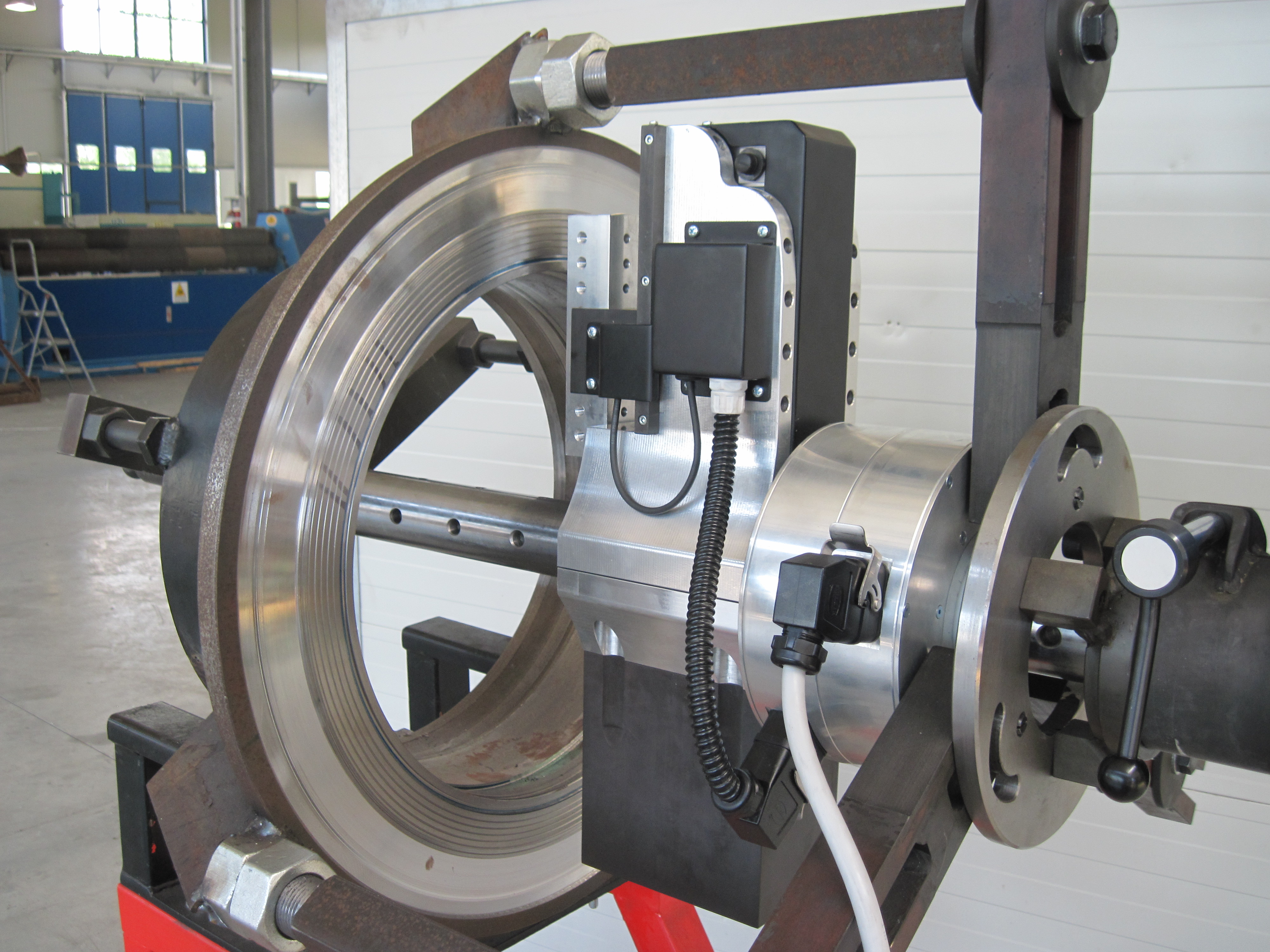

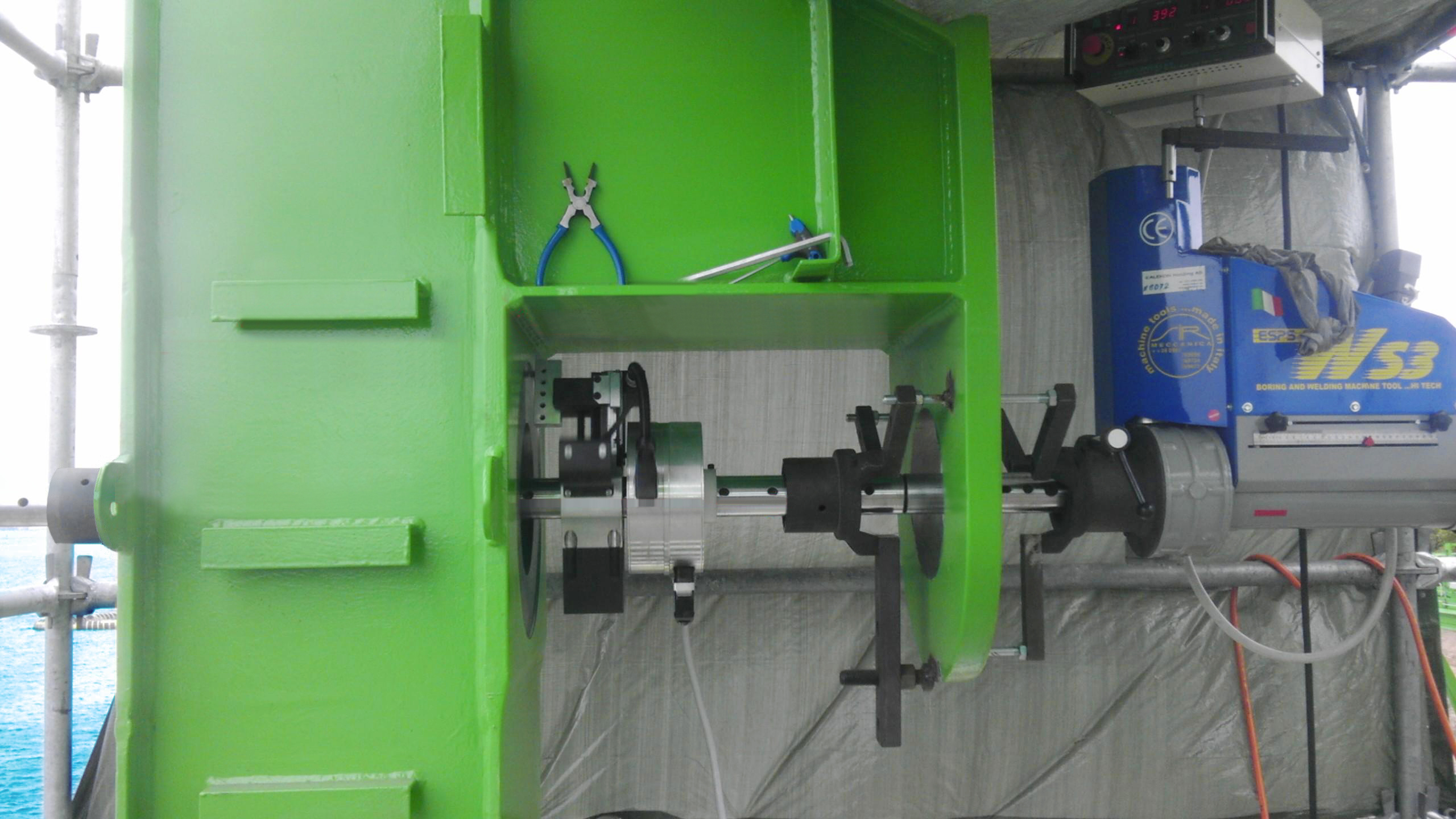

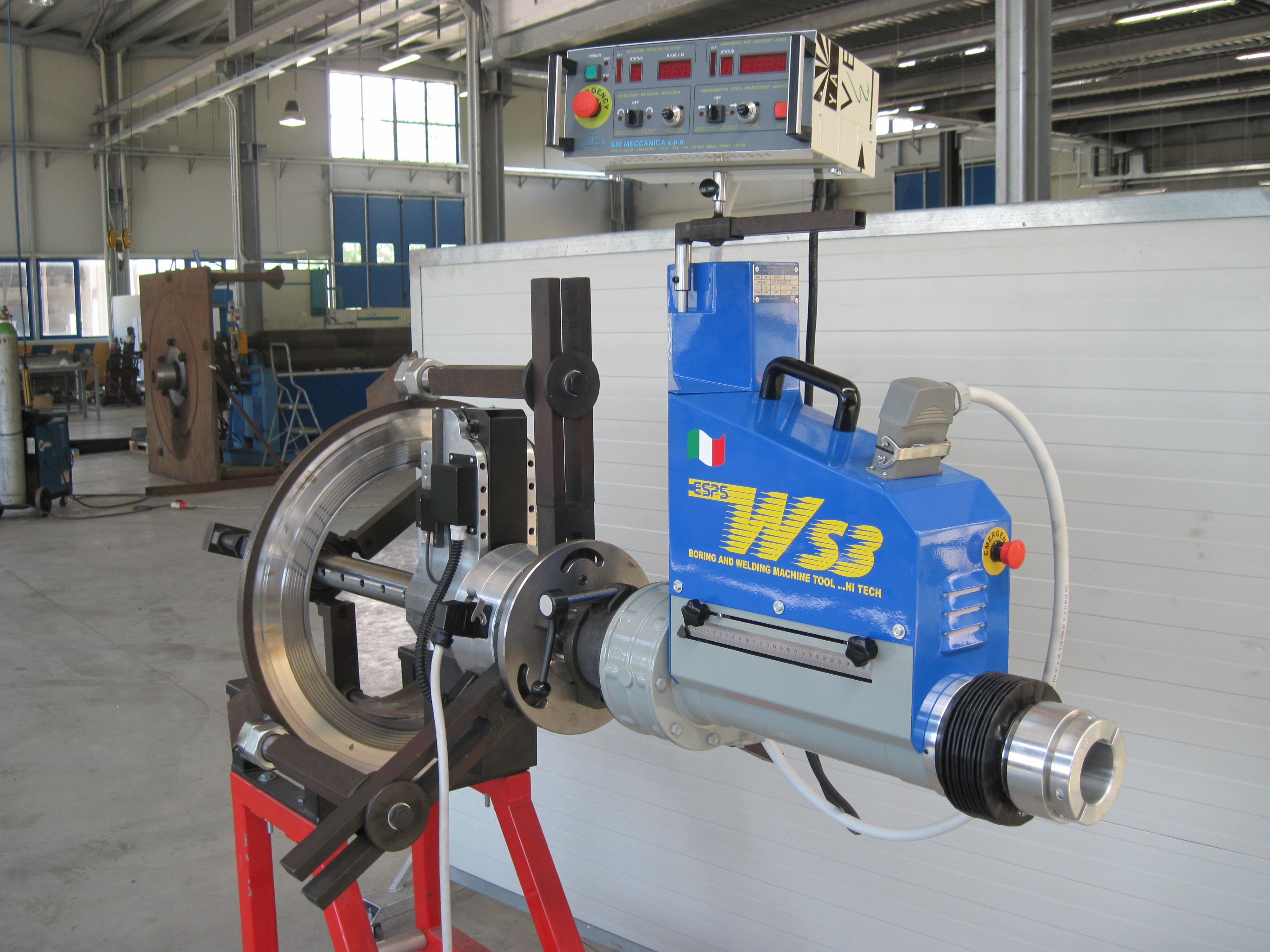

The MOTORIZED FACING HEAD - MFH fastened on a rotating and translating axis, managed by machines in the Ws series, is used to perform face or internal turning operations (linear or non-linear) on cylindrical tubular bodies. The operator can control the various machining phases using the electronic control panel supplied, which works separately from the one on the machine tool.

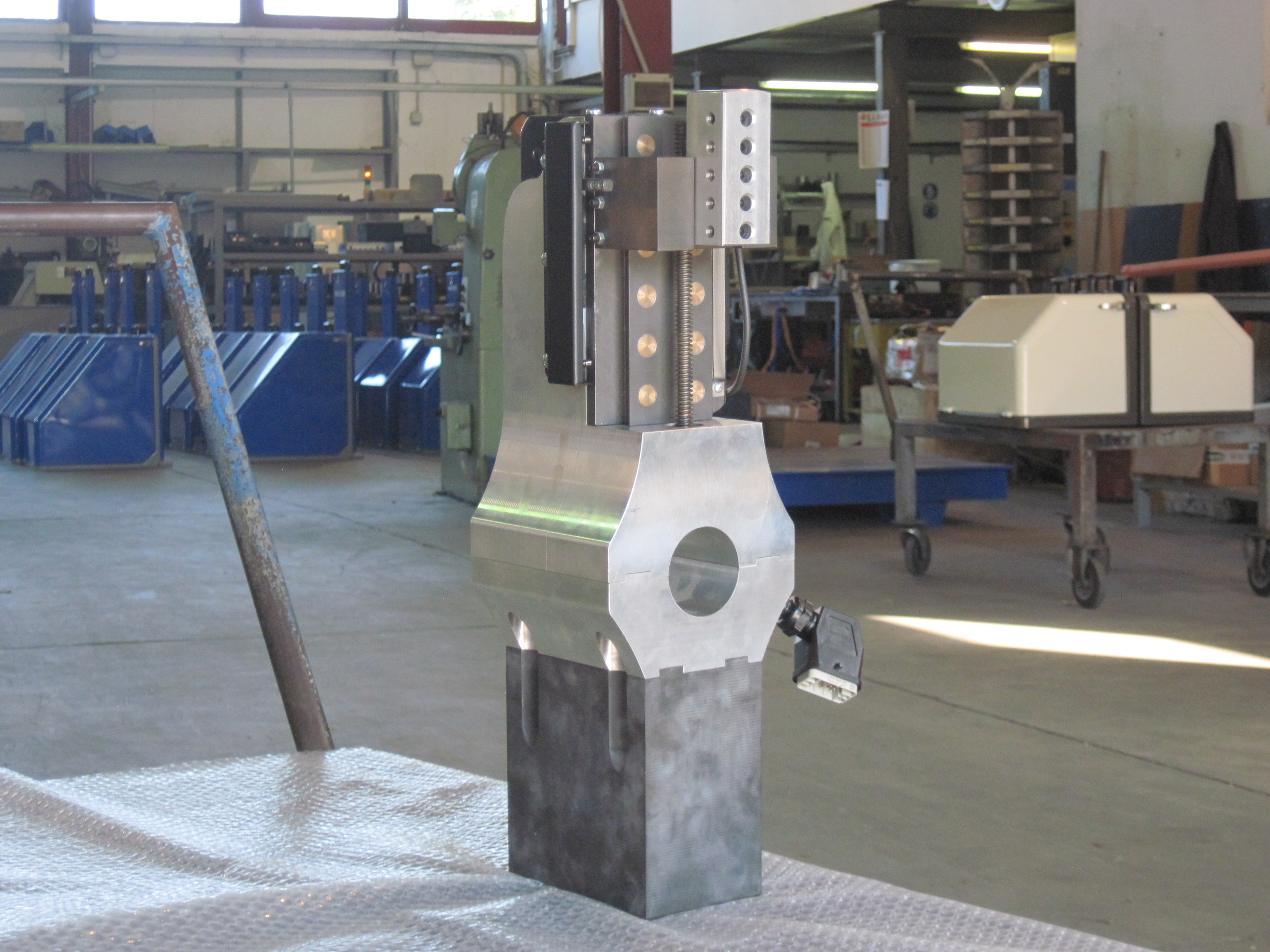

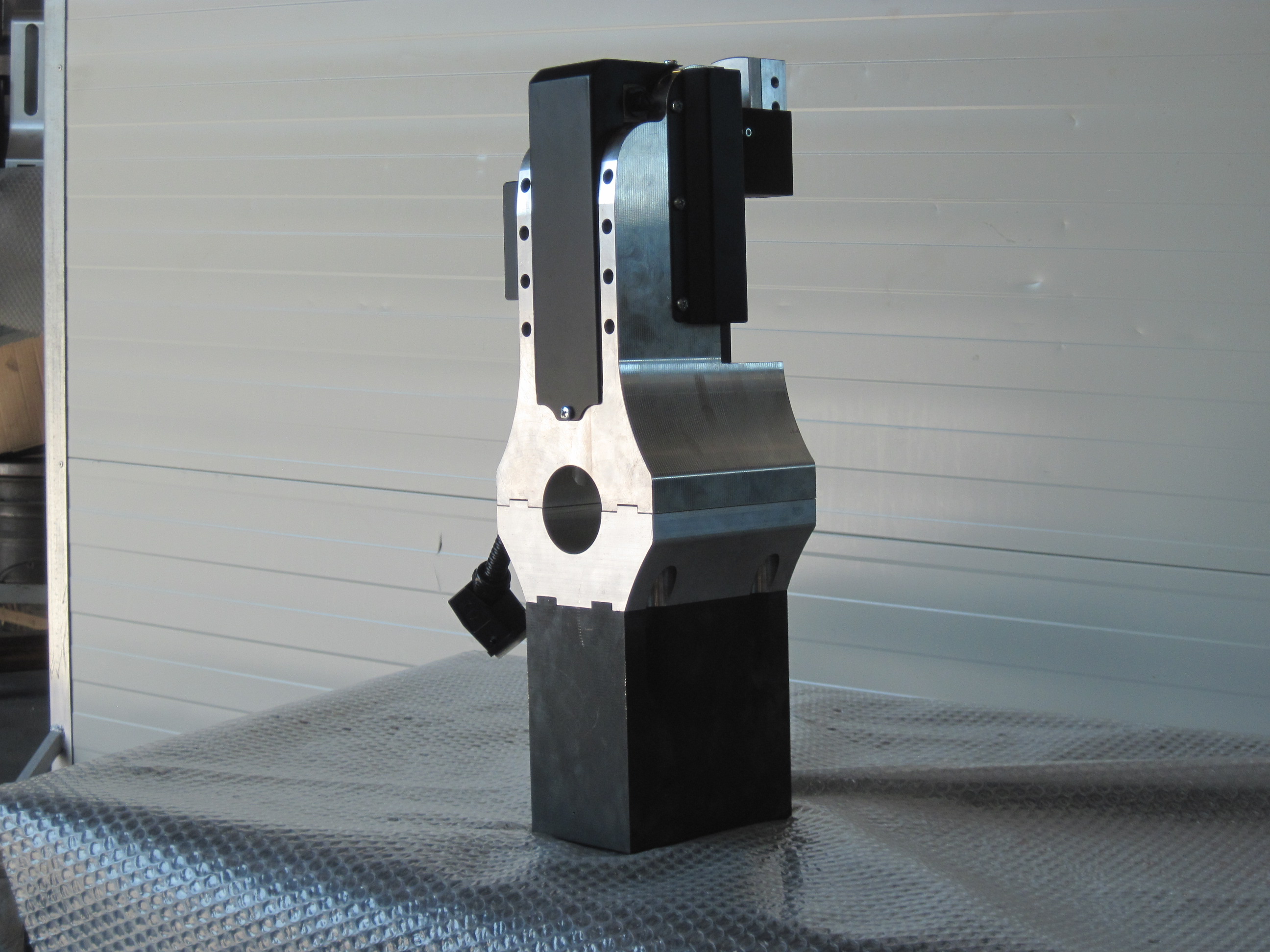

The MOTORIZED HEAD MFH, available in standard and mini versions, performs:
ORTHOGONAL MACHINING OF PLANES;
CREATION OF SEEGER AND O-RING SEATS;
INTERNAL TURNING LINEAR OR NON-LINEAR;
CONCENTRIC GROOVES;
MACHINING OF CYLINDRICAL SURFACES.
Available for WS2 Plus, WS3, WS5 and WS7 Plus.
