Image 1 of 6Rotary Welding

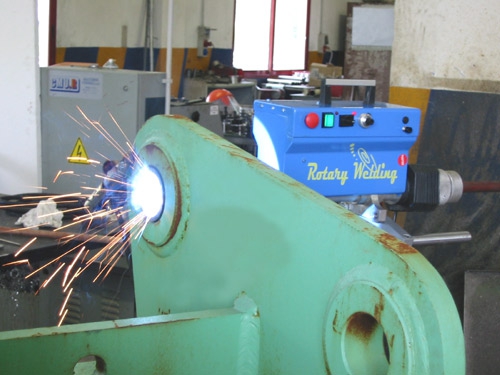

This Sir Meccanica rotary welding machine offers internal and external overlay welding with spiral technology and an electromechanical feed system.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview

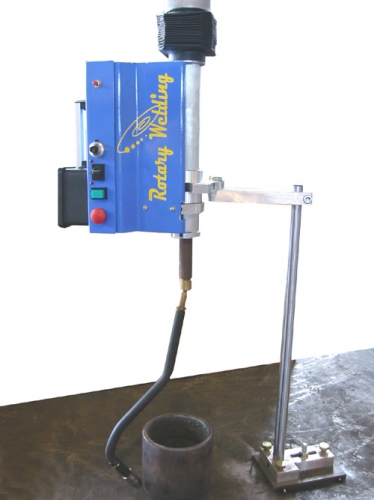

Rotary Welding Machine
Sir Meccanica Rotary Welding Machine with standard equipment.
Overlay Welding Capacity:

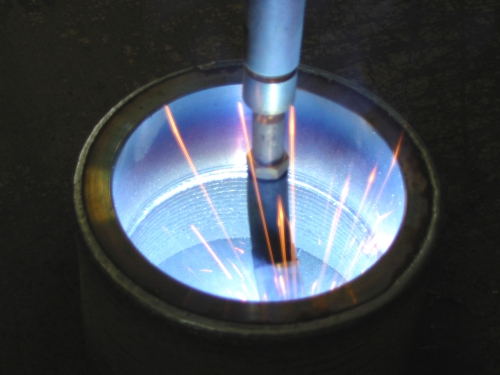

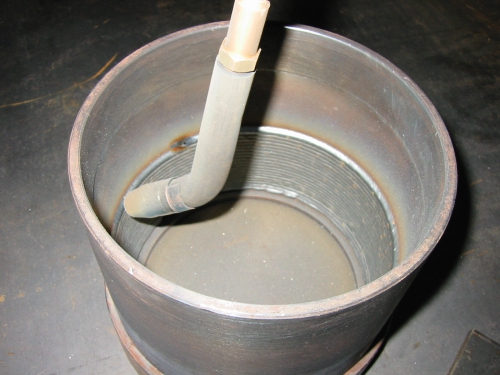

- Internal: 25 mm to 400 mm

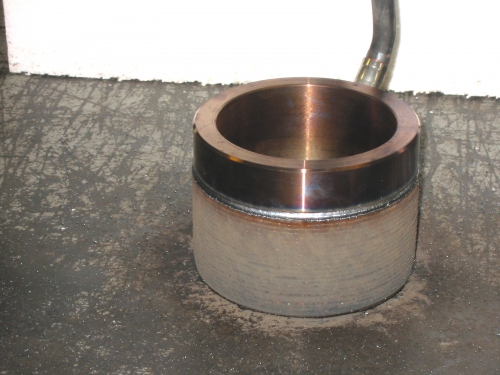

- External: 20 mm to 250 mm
Welding Technology: Spiral (continuous)
Longitudinal Stroke: Unlimited with step of 220 mm
Motor: W 45
Feed System: Electric-mechanical
Feed Rate: 3 mm/rpm
Max Rotation Speed: 44 rpm
Drive Unit Weight: 4 kg
Total Weight (incl. box): 8 kg
