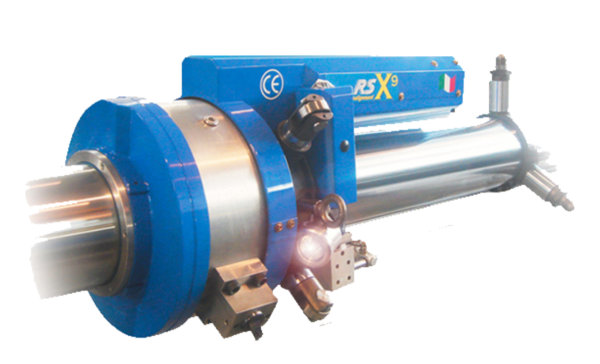

RSX9 1200

Power-operated kit for orthogonal FLANGE FACING from 700 mm to 1800 mm

The ideal solution for boring and realignment on large diameters and over long lengths.

• Chip removal machine, designed for axial alignments or realignments, of big tubes that have axial/symmetrical cylindrical cavities, developed mainly in length, inaccessible or not manageable with conventional machine tools.
• Designed to perform "on-site" jobs, replaces the inabilities and difficulties of economic/logistics nature, of moving the big tubes and all their connections or structures from the working area.
• The RSX9, for the precise and solid mechanical structure, is suitable to all the numerous turning applications for roughing and finishing of internal cylindrical surface.
• With the use of the appropriate accessories, you can perform flange facing on the front face of the cavity.
• It is equipped with fast movements in order to optimize the working time and it has a safety anti-locking system which in case of an abnormality allows the neutral of transmissions and a fast salvage of the machine from the working cavity.
• The entire working system is electronically handled through interactions with different transducers, that allow for a constant monitoring and setting of the cutting and feeding parameters.

The machine is equipped with 1 (one) electronic control panel with diagnostic display
DIAMETER OF CENTRAL FIXED AXLE SHAFT	mm	180
LENGTH OF CENTRAL FIXED AXLE SHAFT	mm	6000
BORING DIAMETER	mm	From 700 - 1200
INDEPENDENT ROTATION SYSTEM		OPERATED (DC EC NORM)
INDEPENDENT AXIAL MOVEMENT SYSTEM		OPERATED (DC EC NORM)
MAX FEED SPEED	mm/min	200
MAX ROTATION SPEED	Rpm	30
MAX TORQUE OF ROTATION TOOL	Nm	5000
