This portable orbital lathe offers precise CNC machining for fixed tubular components on-site, handling turning, threading, and grooving operations.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview

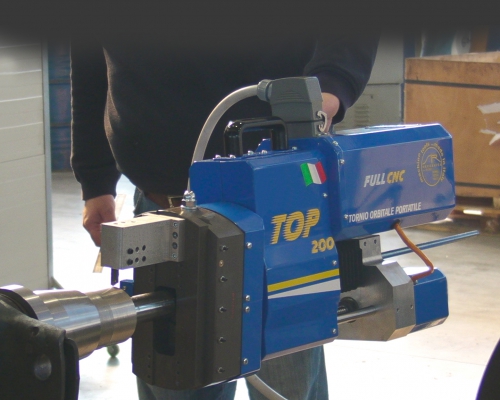

TOP 200 Full CNC Portable Orbital Lathe

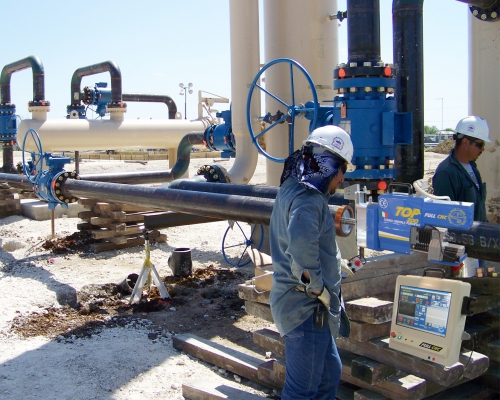

For “on-site” turning with extreme precision (completely run by a CNC control panel),
on faces and internal or external extremities of cylindrical surfaces, of fixed tubular bodies which are immovable or impossible to rotate.

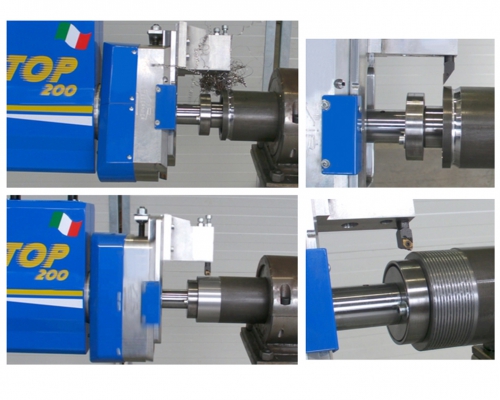

- Straight line and/or curved - internal and/or external interpolations.
- Standard and/or tapered threading.

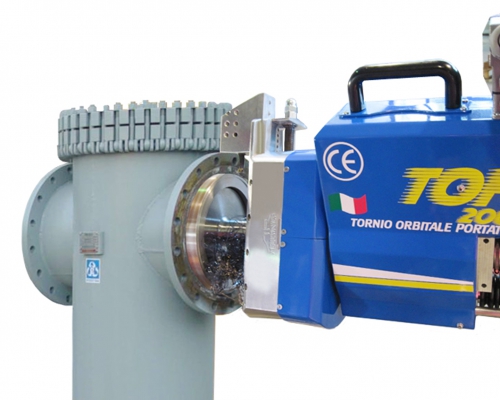

- Simple and/or profile facing.
- Multilevel cylindrical grooves.
| Radial Stroke (X) | mm | 50 |
| Axial Stroke (Z) | mm | 100 |
| Machining Diameter | mm | 200 |
| Maximum Rotation Speed (s) | Rpm | 210 |
| Step By Step Motor Axial Movement System | (0.0018°/Step) Rolled Screws Resolution: 16000 Step/mm | |
| Step By Step Motor Radial Movement System | (0.0018°/Step) Rolled Screws Resolution: 333 Step/mm | |
| Max Torque Peak Rotation Spindle | Nm | 300 - Nominal 65 |
