This CNC machine conducts high-precision on-site turning operations on fixed cylindrical bodies.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview

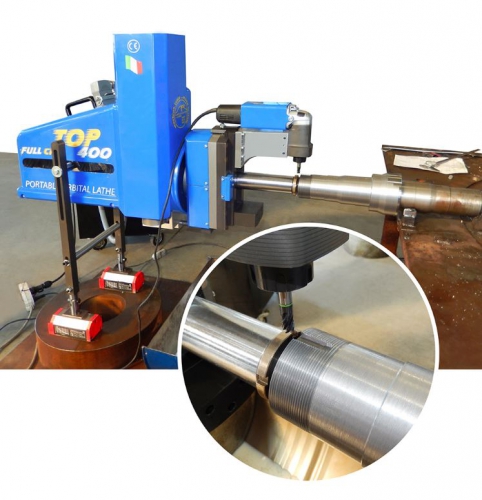

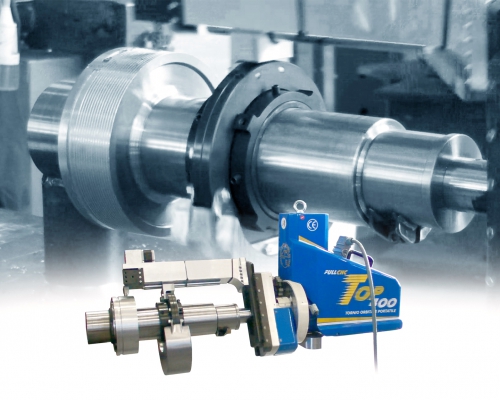

TOP 400 for “on-site” turning with extreme precision (completely run by a CNC control panel), on faces and internal
and/or external extremities of cylindrical surfaces, of fixed tubular bodies which are immovable or impossible to rotate.
- Straight line and/or curved - internal and/or external interpolations.

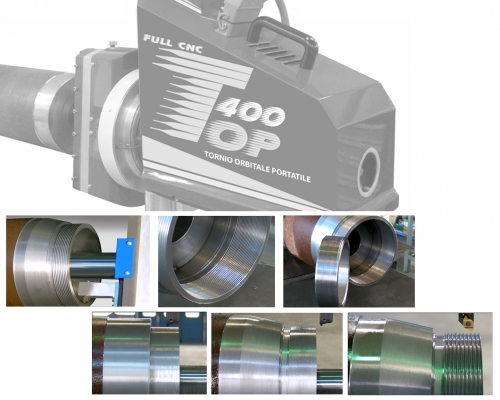

- Standard and/or tapered threading.
- Simple and/or profile facing.

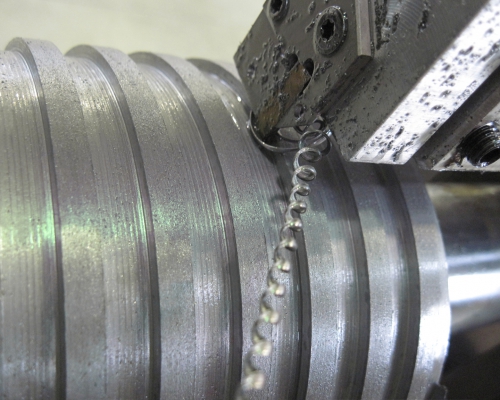

- Multilevel cylindrical grooves.

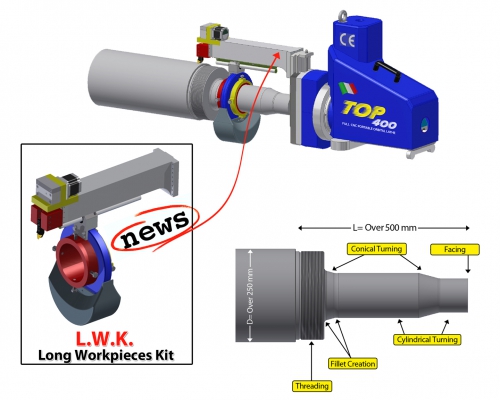

- Optional Keyway Milling and Long Workpiece kits.
| Radial Stroke (X) | mm | 80 |
| Axial Stroke (Z) | mm | 200 |
| Machining Diameter | mm | 400 |
| Maximum Rotation Speed (s) | Rpm | 95 |
| Step By Step Motor Axial Movement System | (0.0018°/Step) Rolled Screws Resolution: 20670 Step/mm | |
| Step By Step Motor Radial Movement System | (0.0018°/Step) Rolled Screws Resolution: 500 Step/mm | |
| Max Torque Peak Rotation Spindle | Nm | 650 - Nominal 140 Nm |
