Image 1 of 6W Smaller 22~70mm
This portable field machining tool performs boring, welding, drilling, and tapping for on-site bore and joint repair.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview
Working Diameters with Standard Equipment
IN-LINE BORING
Starting from ø 22mm to ø 70mm
OVERLAY WELDING
Internal– from ø 25mm to ø 400mm
External- from ø 20mm to ø 250mm

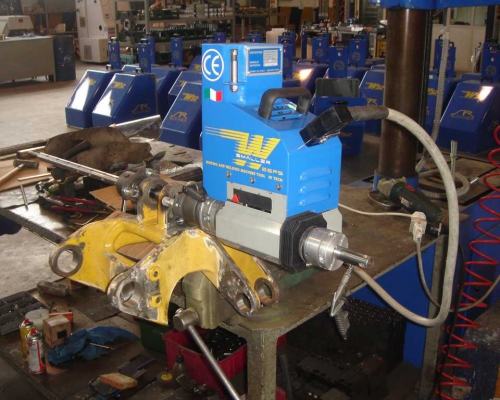

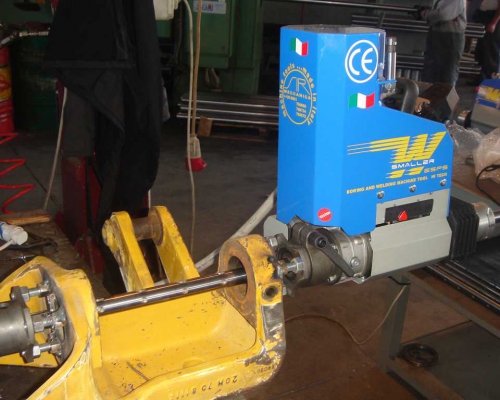

WS Series: In a single, simple set-up, these machines perform on-site:
- BORING
- OVERLAY WELDING ON INSIDE AND OUTSIDE SURFACES
- DRILLING
- TAPPING

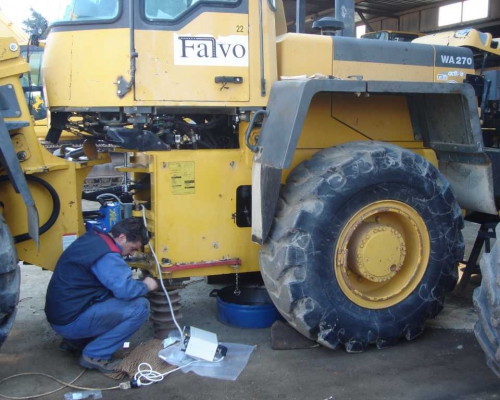

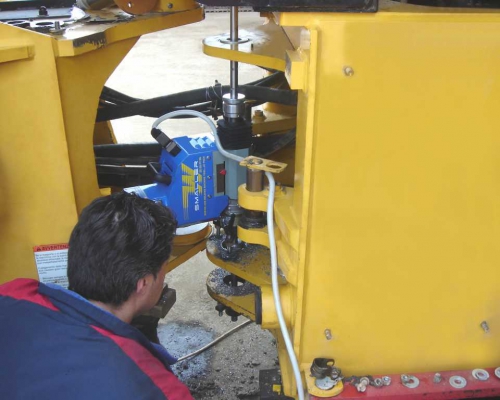

to restore any tapered or worn out bore to its original size. The machines in this series stand out for their stability, accuracy, compact size, sturdiness, safety, smart application and smooth operation. The WS series includes 8 models, each with a different work range. Individual machines provide high accuracy for on-site repair of bores and joints of large and small equipment, eliminating the need to disassemble the equipment, reducing down time and avoiding transport to a repair shop. Statistics show that these innovative machines reduce repair time by 85%.
| TOOL HOLDER SHAFT DIAMETER | mm | 20 ( 0,79 in ) |
| TOOL HOLDER SHAFT LENGTH | mm | N° 2 connectable self-centring bars with conical coupling 1000+1000 |
| BORING DIAMETER | mm | 22 - 70 ( 0,87 in – 2,76 in ) |
| WELDING DIAMETER | mm | 25 - 400 ( 0,98 in – 15,75 in ) |
| WELDING TECHNOLOGY | SPIRAL (CONTINUOUS WITH VARIABLE STEP) | |
| LONGITUDINAL STROKE | UNLIMITED WITH STEP OF 120mm (4,8 in) | |
| ROTATION MOTOR | C/C (CE COMPLIANT) | |
| FEED MOTOR | C/C (CE COMPLIANT) | |
| FEED SYSTEM | ELECTRIC-MECHANICAL | |
| OUTPUT TORQUE AT THE BAR | 46,5 Nm ( 400 Rpm ) | |
| FEED RATE | mm/rpm | 0 - 0,3 ( 0 – 0,01 in / rev ) |
| MAX FEED SPEED(w/rapid button) | mm/min | 130 |
| REMOVAL MATERIAL | cm³/min | 18 |
| DRIVE UNIT WEIGHT | Kg | 12 |
| MAX ROTATION SPEED | rpm | 400 |
