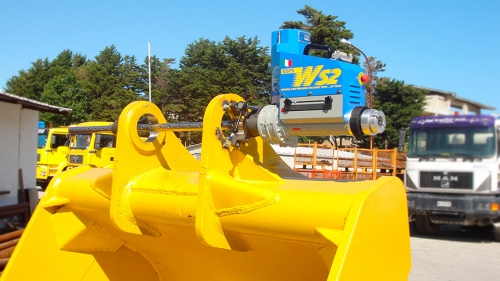

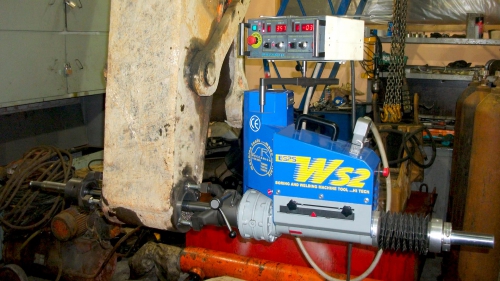

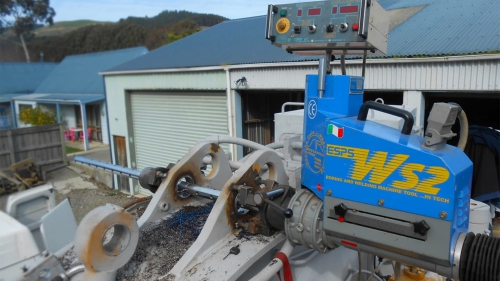

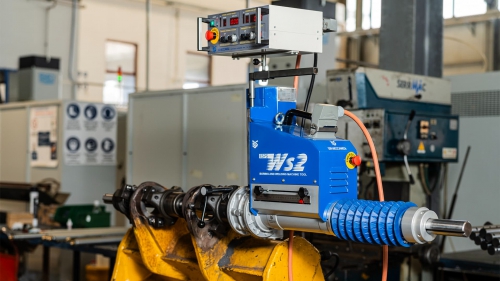

Image 1 of 5WS2 42~400mm
This portable alignment boring and rotary welding system repairs bores from 42mm to 400mm, with additional drilling and tapping機能を.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview
IN-LINE BORING
Starting from ø 42mm to over ø 400mm
OVERLAY WELDING
Internal– from ø 25mm to over ø 400mm
External- from ø 20mm to over ø 250mm
Drilling – from ø 5mm to max ø 15mm
Tapping – from ø 8mm to max ø 45mm
with presetting for Tapping
WS Series: In a single, simple set-up, these machines perform on-site:
- BORING
- OVERLAY WELDING ON INSIDE AND OUTSIDE SURFACES
- DRILLING
- TAPPING
to restore any tapered or worn out bore to its original size. The machines in this series stand out for their stability, accuracy, compact size, sturdiness, safety, smart application and smooth operation. The WS series includes 8 models, each with a different work range. Individual machines provide high accuracy for on-site repair of bores and joints of large and small equipment, eliminating the need to disassemble the equipment, reducing down time and avoiding transport to a repair shop. Statistics show that these innovative machines reduce repair time by 85%.
| TOOL HOLDER SHAFT DIAMETER | mm | 40 ( 1,57 in ) |
| TOOL HOLDER SHAFT LENGTH | mm | N°3 connectable self-centring bars with conical coupling 1000 + 1000 + 730 |
| BORING DIAMETER | mm | 22 - 400 ( 0,87 in - 15,75 in ) |
| WELDING DIAMETER | mm | 25 - 400 ( 0,98 in - 15,75 in ) |
| WELDING TECHNOLOGY | SPIRAL (CONTINUOUS WITH VARIABLE STEP) | |
| LONGITUDINAL STROKE | mm | UNLIMITED WITH STEP OF 220mm (8,66 in) |
| ROTATION MOTOR | DC (CE COMPLIANT) | |
| FEED MOTOR | DC (CE COMPLIANT) | |
| FEED SYSTEM | ELECTRIC-MECHANICAL | |
| OUTPUT TORQUE AT THE BAR | 290 Nm (266 Rpm) | |
| MAX ROTATION SPEED | RPM | 266 |
| FEED RATE | mm/rpm | 0- 0,5 ( 0–0,02"/ rev ) |
| MAX FEED SPEED(w/rapid button) | mm/min | 285 |
| REMOVAL MATERIAL | cm³/min | 23 |
| DRIVE UNIT WEIGHT | Kg | 34 |
