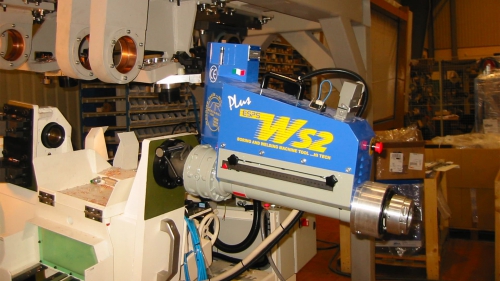

WS2 Plus 52~450mm

IN-LINE BORING
Starting from ø 52mm to ø 450mm

OVERLAY WELDING
Internal– from ø 25mm to ø 450mm
External- from ø 20mm to ø 250mm
Drilling – from ø 8mm to max ø 45mm
Tapping – from ø 5mm to max ø 15mm with presetting for Tapping

WS Series: In a single, simple set-up, these machines perform on-site:

• BORING
• OVERLAY WELDING ON INSIDE AND OUTSIDE SURFACES
• DRILLING
• TAPPING

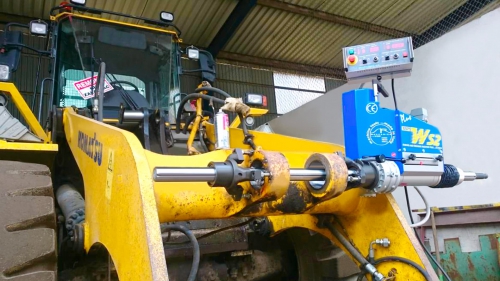

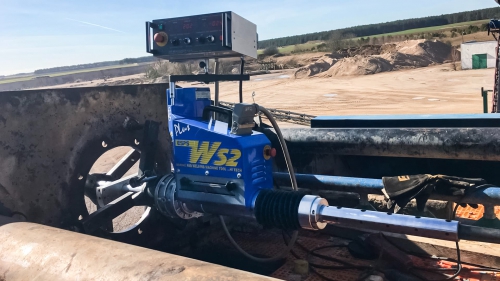

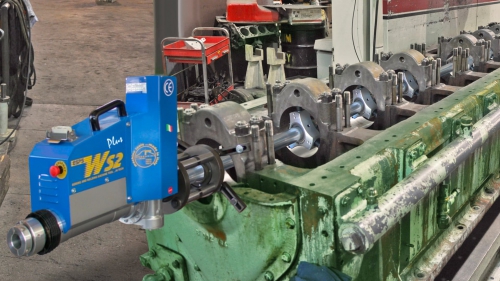

to restore any tapered or worn out bore to its original size. The machines in this series stand out for their stability, accuracy, compact size, sturdiness, safety, smart application and smooth operation. The WS series includes 8 models, each with a different work range. Individual machines provide high accuracy for on-site repair of bores and joints of large and small equipment, eliminating the need to disassemble the equipment, reducing down time and avoiding transport to a repair shop. Statistics show that these innovative machines reduce repair time by 85%.

TOOL HOLDER SHAFT DIAMETER	mm	50 ( 1,97 in)
TOOL HOLDER SHAFT LENGTH	mm	N°3 connectable self-centring bars with conical coupling 1000 + 1000 + 860
BORING DIAMETER	mm	32 - 450 ( 1,25 in - 17,725 in )
WELDING DIAMETER	mm	25 - 450 ( 0,98 in - 17,725 in )
WELDING TECHNOLOGY		SPIRAL (CONTINUOUS WITH VARIABLE STEP)
LONGITUDINAL STROKE		UNLIMITED WITH STEP OF 220mm (8,66 in)
ROTATION MOTOR		C/C (CE COMPLIANT)
FEED MOTOR		C/C (CE COMPLIANT)
FEED SYSTEM		ELECTRIC-MECHANICAL
OUTPUT TORQUE AT THE BAR		290 Nm (266 Rpm)
MAX ROTATION SPEED	Rpm	266
FEED RATE	mm/Rpm	0 - 0,5 ( 0 – 0,02 in / rev )
MAX FEED SPEED(w/rapid button)	mm/min	285
REMOVAL MATERIAL	cm³/min	23
DRIVE UNIT WEIGHT	Kg	35
