WS3 62~600mm (opt. 800mm)

IN-LINE BORING

Starting from ø 62mm to ø 600mm
OVERLAY WELDING
Internal– from ø 42mm to ø 600mm
External- from ø 20mm to ø 250mm
Drilling – from ø 10mm to max ø 65mm
Tapping – from ø 5mm to max ø 20mm with presetting for Tapping

(Boring and Welding from 600mm to 800mm with the optional KIT 800)

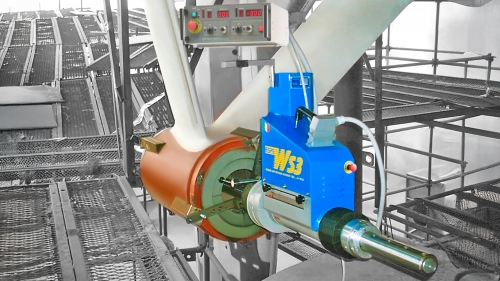

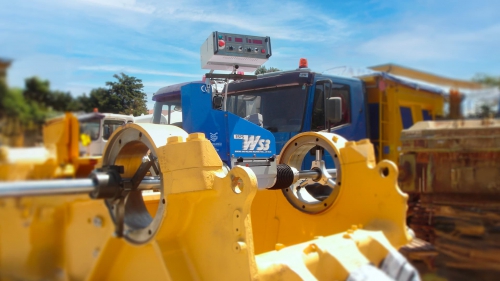

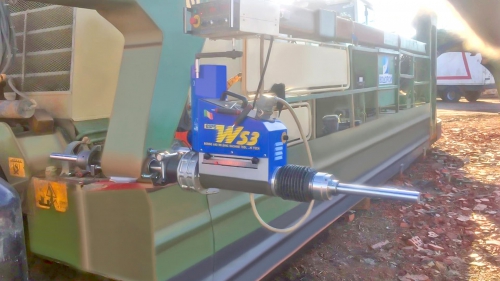

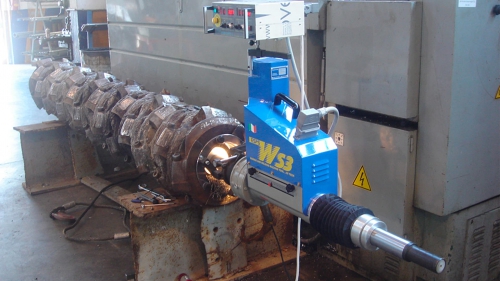

WS Series: In a single, simple set-up, these machines perform on-site:

• BORING
• OVERLAY WELDING ON INSIDE AND OUTSIDE SURFACES
• DRILLING
• TAPPING

to restore any tapered or worn out bore to its original size. The machines in this series stand out for their stability, accuracy, compact size, sturdiness, safety, smart application and smooth operation. The WS series includes 8 models, each with a different work range. Individual machines provide high accuracy for on-site repair of bores and joints of large and small equipment, eliminating the need to disassemble the equipment, reducing down time and avoiding transport to a repair shop. Statistics show that these innovative machines reduce repair time by 85%.

TOOL HOLDER SHAFT DIAMETER	mm	60 ( 2,36 in )
TOOL HOLDER SHAFT LENGTH	mm	N°3 connectable self-centring bars with conical coupling 1500 + 1500 + 1500
BORING DIAMETER	mm	42 - 800 ( 1,65 in - 31,50 in )
WELDING DIAMETER	mm	42 - 800 ( 1,65 in - 31,50 in )
WELDING TECHNOLOGY		SPIRAL (CONTINUOUS WITH VARIABLE STEP)
LONGITUDINAL STROKE		UNLIMITED WITH STEP OF 250mm (9,84 in)
ROTATION MOTOR		C/C (CE COMPLIANT)
FEED MOTOR		C/C (CE COMPLIANT)
FEED SYSTEM		ELECTRIC-MECHANICAL
OUTPUT TORQUE AT THE BAR		820 Nm (143 rpm)
MAX ROTATION SPEED	Rpm	143
FEED RATE	mm/Rpm	0 - 0,03 ( 0 - 0,01 in / rev )
MAX FEED SPEED (w/rapid button)	mm/min	105
REMOVAL MATERIAL	cm³/min	75
DRIVE UNIT WEIGHT	Kg	40
