Image 1 of 6WS3 CNC
This portable CNC machine tool performs complex boring and turning operations, ideal for internal machining in confined spaces.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview

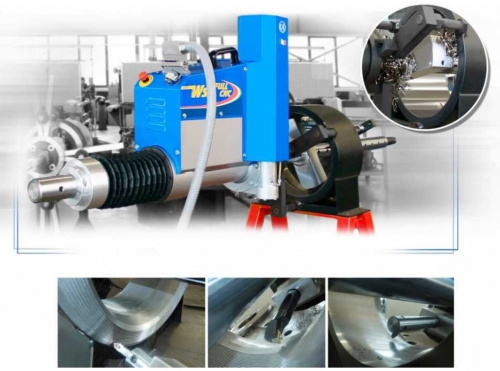

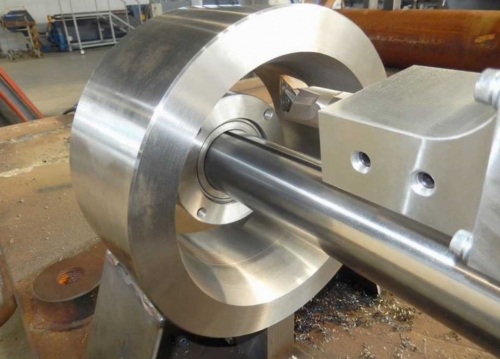

The WS3 FULL CNC portable multi-function machine tool allows you to manage all boring and CNC turning operations. It is particularly suitable for internal machining of housings, fittings, interpolations, and threading that are not visible and not easily accessible by conventional machines.
It has all the advantages of the WS series machine tools enhanced with a CNC head, allowing the following machining operations:
- Curved shaping with any type of radius
- Conical machining any type of chamfers
- Facing on variable geometric surfaces

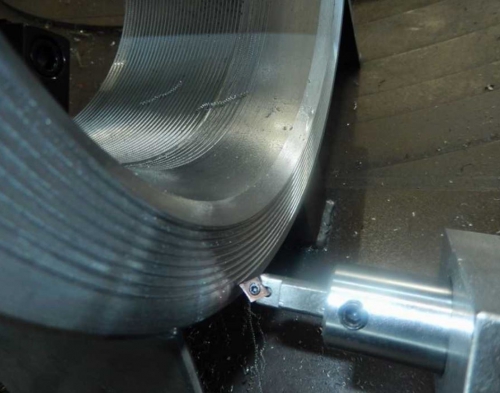

- “Phonograph” grooves with any type of grooving

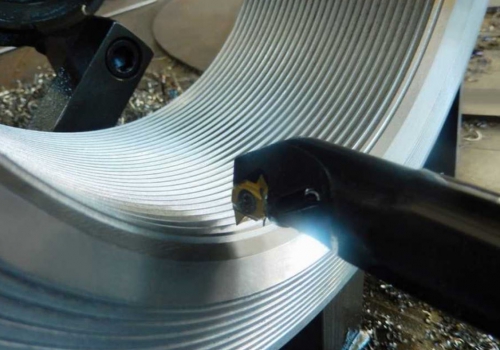

- All type of threads with any thread pitch

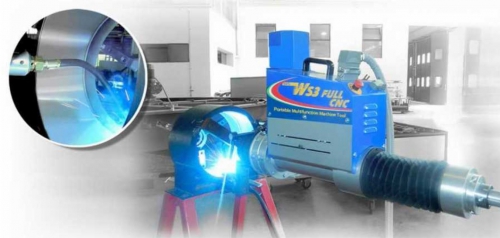

- Pre-set for internal overlay welding
| Minimum diameter | 110mm |
|---|---|
| Maximum diameter | 600mm |
| Longitudinal stroke | 250mm |
