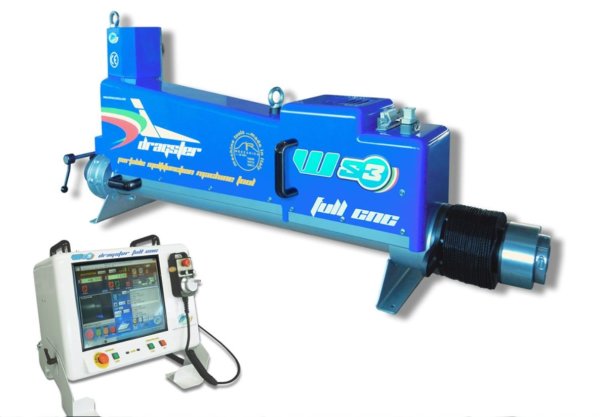

Image 1 of 5WS3 CNC Dragster 1000
This portable multi-function machine tool handles boring and CNC turning, ideal for internal machining of housings, fittings, interpolations, and threading.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview
The WS3 CNC Dragster 1000 portable multi-function machine tool allows you to manage all boring and CNC turning operations.

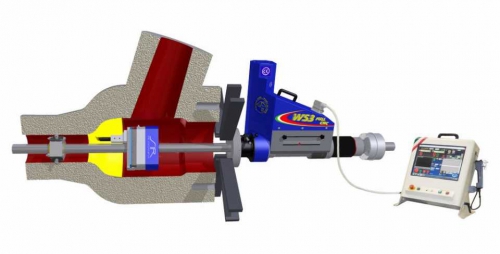

It is particularly suitable for internal machining of housings, fittings , interpolations and threading that are
not visible and not easily accessible by conventional machines.
It has all the advantages of the WS series machine tools enhanced with a CNC head,
allowing the following machining operations.
• Curved shaping with any tips of radius
• Conical machining and any type of chamfers

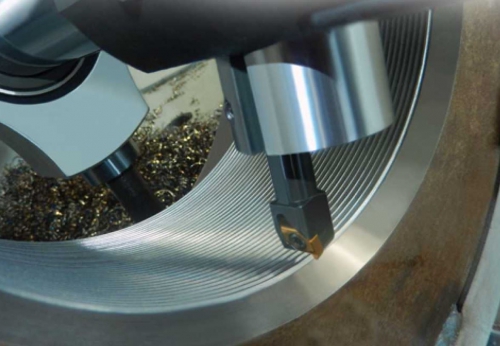

• All type of threading
• Simple and shaped facing
• Any type of grooving
• Phonographic grooves
Working diameter 110-600mm
Radial Stroke (X) (Small Head) MACHINING MIN Ø 110 mm STEP FROM 30
Radial Stroke (X) (Medium Head) MACHINING MIN Ø 155 mm STEP FROM 40
Radial Stroke (X) (Big Head) MACHINING MIN Ø 350 mm STEP FROM 60
Axial Stroke (Z) 1000mm FOR EACH STEP
