This portable multi-function machine tool performs boring and CNC turning operations, ideal for internal machining of housings, fittings, and threading.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview

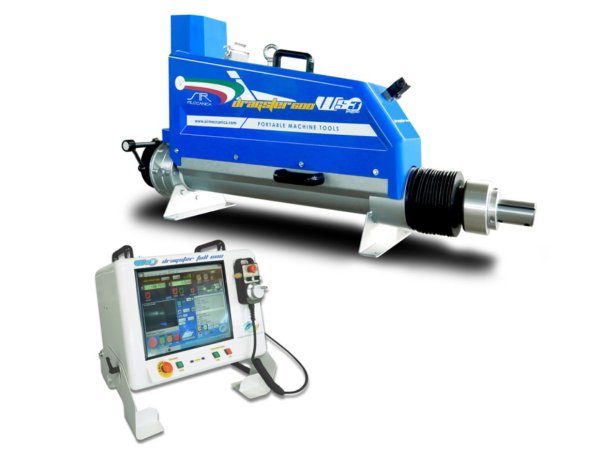

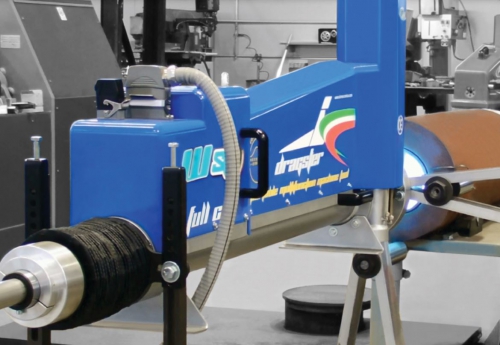

The WS3 CNC Dragster 600 is a portable multi-function machine tool that manages all boring and CNC turning operations.

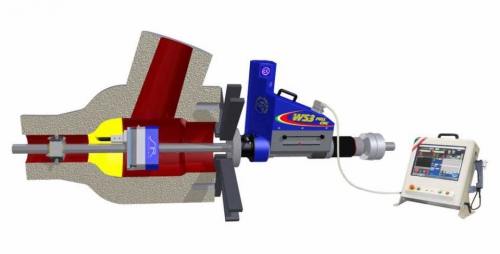

It is suitable for internal machining of housings, fittings, interpolations, and threading that are not visible and not easily accessible by conventional machines.
It includes the advantages of the WS series machine tools, enhanced with a CNC head, allowing the following machining operations:
- Curved shaping with any tips of radius
- Conical machining and any type of chamfers

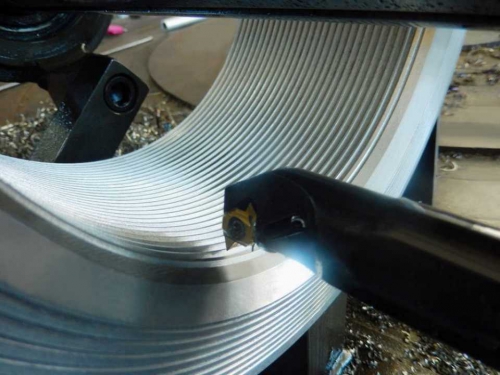

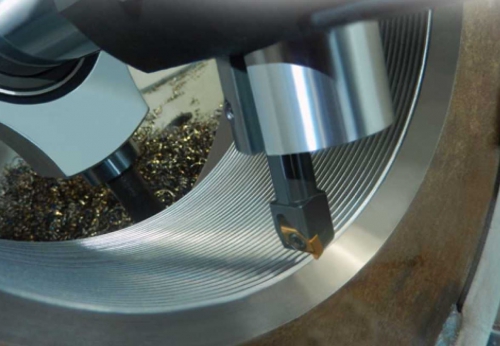

- All types of threading

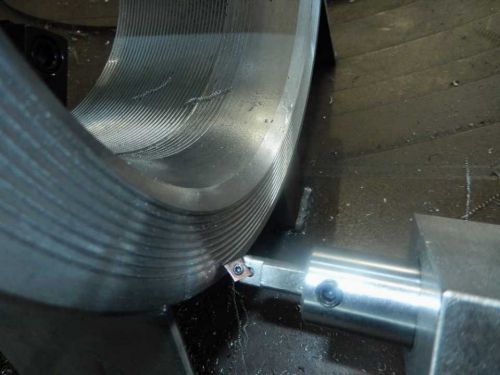

- Simple and shaped facing
- Any type of grooving
- Phonographic grooves
| Working diameter | 110-600mm |
| Radial Stroke (X) (Small Head) | MACHINING MIN Ø 110 mm STEP FROM 30 |
| Radial Stroke (X) (Medium Head) | MACHINING MIN Ø 155 mm STEP FROM 40 |
| Radial Stroke (X) (Big Head) | MACHINING MIN Ø 350 mm STEP FROM 60 |
| Axial Stroke (Z) | 600mm FOR EACH STEP |
