Image 1 of 5WS3 CNC Dragster 800
This portable multi-function machine tool performs boring and CNC turning operations, ideal for internal machining of hard-to-reach areas.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview

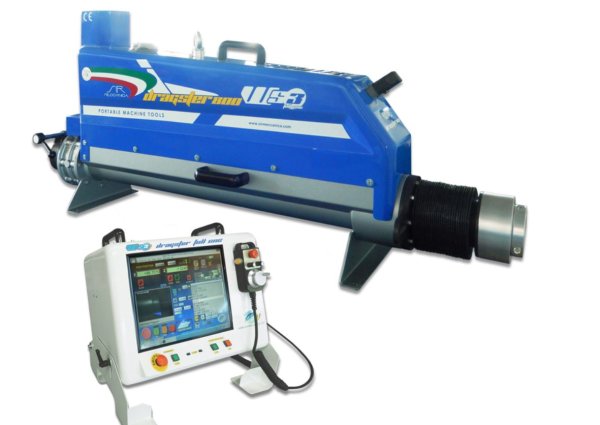

The WS3 CNC Dragster 800 portable multi-function machine tool allows you to manage all boring and CNC turning operations.

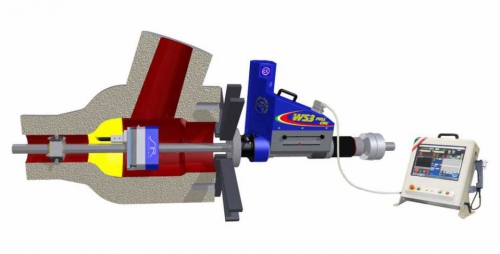

It is particularly suitable for internal machining of housings, fittings , interpolations and threading that are
not visible and not easily accessible by conventional machines.
It has all the advantages of the WS series machine tools enhanced with a CNC head,
allowing the following machining operations.

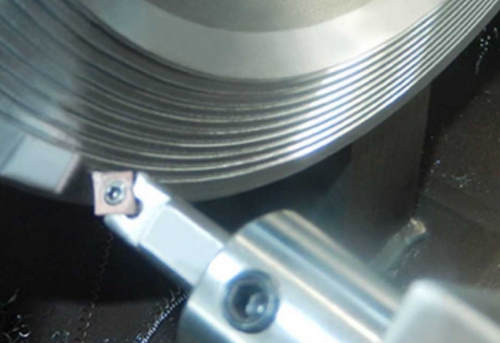

• Curved shaping with any tips of radius
• Conical machining and any type of chamfers

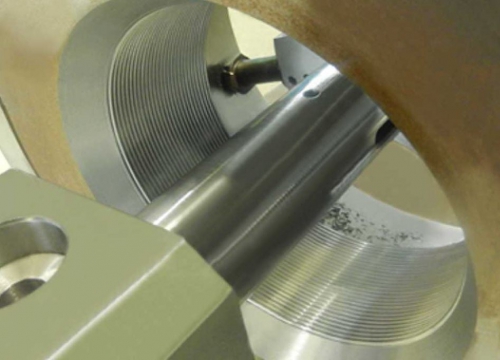

• All type of threading
• Simple and shaped facing
• Any type of grooving
• Phonographic grooves
Working diameter 110-600mm
Radial Stroke (X) (Small Head) MACHINING MIN Ø 110 mm STEP FROM 30
Radial Stroke (X) (Medium Head) MACHINING MIN Ø 155 mm STEP FROM 40
Radial Stroke (X) (Big Head) MACHINING MIN Ø 350 mm STEP FROM 60
Axial Stroke (Z) 800mm FOR EACH STEP
