Image 1 of 5WS5 180~1000mm

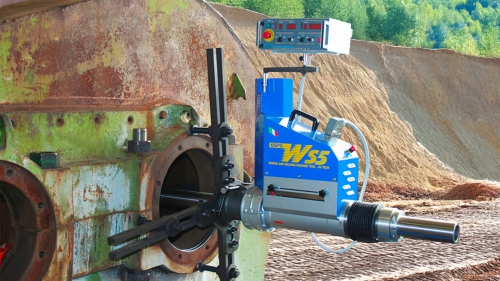

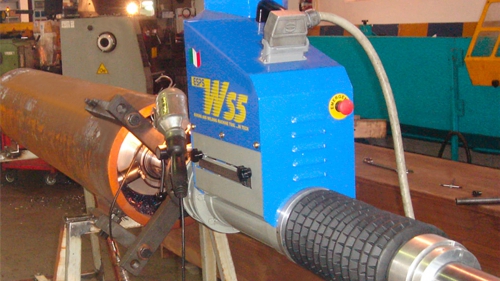

This portable boring and welding machine precisely restores bores from 180mm to over 1000mm, reducing repair time and dismantling needs.
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Overview
With Standard Equipment
IN-LINE BORING
Starting from ø 180mm to over ø 1000mm
OVERLAY WELDING
Internal– from ø 100mm to over ø 1000mm
External- from ø 20mm to over ø 250mm

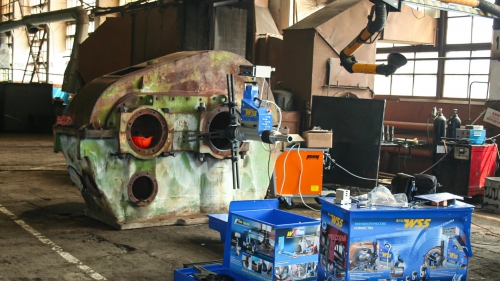

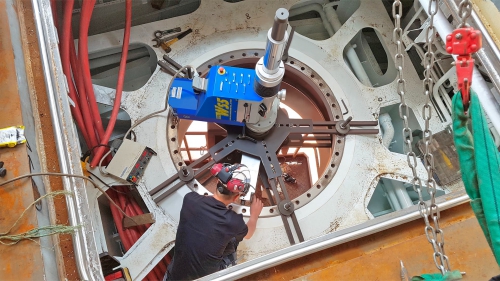

WS Series: In a single, simple set-up, these machines perform on-site:
- BORING
- OVERLAY WELDING ON INSIDE AND OUTSIDE SURFACES
- DRILLING
- TAPPING
to restore any tapered or worn out bore to its original size. The machines in this series stand out for their stability, accuracy, compact size, sturdiness, safety, smart application and smooth operation. The WS series includes 8 models, each with a different work range. Individual machines provide high accuracy for on-site repair of bores and joints of large and small equipment, eliminating the need to disassemble the equipment, reducing down time and avoiding transport to a repair shop. Statistics show that these innovative machines reduce repair time by 85%.
| TOOL HOLDER SHAFT LENGTH | mm | N°2 connectable self-centring bars with conical coupling 2000 + 1000 |
| BORING DIAMETER | mm | 180 - 1000 ( 7,09 in - 39,37 in ) |
| WELDING DIAMETER | mm | 100 - 1000 ( 3,94 in – 39,37 in ) |
| WELDING TECHNOLOGY | SPIRAL (CONTINUOUS WITH VARIABLE STEP) | |
| LONGITUDINAL STROKE | UNLIMITED WITH STEP OF 220mm (8,66 in) | |
| ROTATION MOTOR | C/C (CE COMPLIANT) | |
| FEED MOTOR | C/C (CE COMPLIANT) | |
| FEED SYSTEM | ELECTRIC-MECHANICAL | |
| OUTPUT TORQUE AT THE BAR | 1700 Nm (100 rpm) | |
| MAX ROTATION SPEED | Rpm | 100 |
| FEED RATE | mm / Rpm | 0 - 0,03 ( 0 - 0,01 in / rev ) |
| MAX FEED SPEED(w/rapid button) | mm / min | 66 |
| REMOVAL MATERIAL | cm³/min | 95 |
| DRIVE UNIT WEIGHT | Kg | 55 |
| TOOL HOLDER SHAFT DIAMETER | mm | 80 ( 3,15 in) |
